Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R

Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R
Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R

大画像 :  Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R

商品の詳細:
起源の場所: 中国
ブランド名: Ericsson
証明: CE
モデル番号: 4443 B1 B3
ドキュメント: LONRISE EQUIPMENT Company ...le.pdf
お支払配送条件:
最小注文数量: 1 PC
受渡し時間: 1〜3日
支払条件: T/T、ウェスタンユニオン

Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R

説明
ブランド: エリクソン モデル: 4443 B1 B3
Moq: 1 PC 条件: 使用済み
リードタイム: 1〜3日 保証: 3ヶ月
使用法: ベースステーション タイプ: RRU
ハイライト:

Ericsson Radio 4443 4T4R transceiver

,

1800MHz-2100MHz optical module

,

Ericsson B1 B3 radio unit

Overview

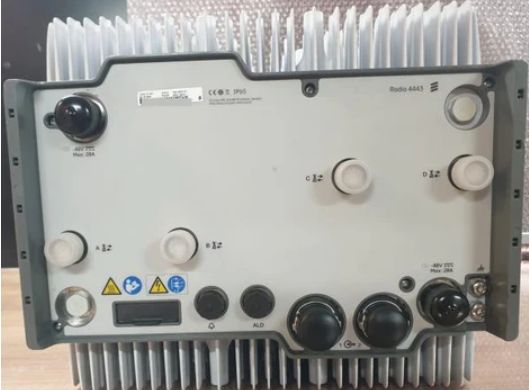

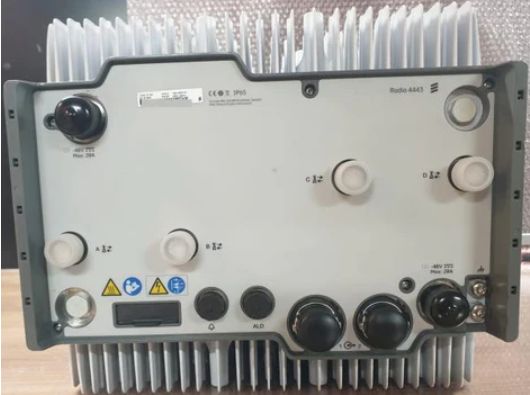

The Ericsson Radio 4443 B1 B3 is a remote radio unit. It features high power efficiency, compact design, and supports multi-carrier capabilities up to 6 carriers per port. The unit connects to a baseband unit via CPRI over optical fiber and can support AISG TMA and RET.
Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R 0Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R 1
Key Specifications & Features:
  • Frequency Bands: LTE Bands 1 (2100 MHz) and 3 (1800 MHz).

  • Architecture: 4T4R (4 Transmit / 4 Receive) MIMO technology for enhanced throughput and reliability.

  • Multi-Standard Ready: Supports LTE, with potential for future 5G (NR) upgrades.

  • Power Output: Up to 4 x 80 W, with a configuration limit of max 4x60W per band, requiring the other band to be 4x20W or less.

  • Carrier Capacity: Supports a maximum of 6 carriers per port for both downlink (DL) and uplink (UL) in LTE.

  • Compact Design: Lightweight and energy-efficient, designed for flexible and efficient deployment.

  • Interface:
    • Antenna Ports: 4 x 4-10 (f).

    • CPRI: 2 x 2.5/4.9/9.8/10 Gbps (exchangeable SFP modules).

    • External Device Support: Supports AISG TMA (Tower Mounted Amplifier) and RET (Remote Electrical Tilt).

  • Mechanical:
    • Weight: Less than 37 kg.

    • Volume: 36 liters, with dimensions 380 x 335 x 289 mm (HxWxD).
    • Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R 2
