商品の詳細:
|
| ブランド: | ZTE | モデル: | 8854ES1800 |
|---|---|---|---|
| 状態: | 使用済み | 保証: | 3ヶ月 |
| リードタイム: | 1〜3日 | 受渡し時間: | 3〜5日 |
| 起源: | 中国 | 使用法: | ベースステーション |
| タイプ: | RRU |
Overview

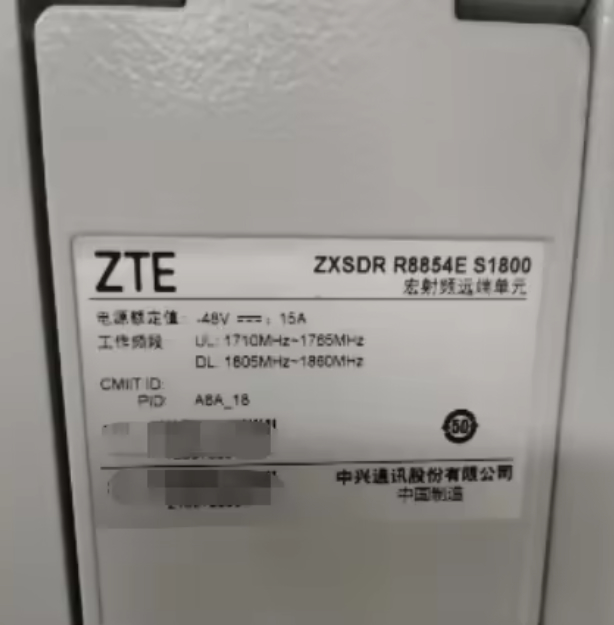

Base station RRU 8854e S1800 A6a Macro Radio Remote Unit offers 2G/3G/4G/5G communication.
| Parameter | Value / Range |
|---|---|
| Band / Frequency | Tx: 1805 – 1880 MHz Rx: 1710 – 1785 MHz |
| Antenna Configuration | 4 × 4 MIMO (4T4R) |
| Output Power (TOC, max) | 4 × 60 W (i.e. four transmit paths each up to 60 W) |
| Receiver Sensitivity | Single antenna mode: ≈ –106.4 dBm Dual antennas: ≈ –109.2 dBm Four antennas: ≈ –112.0 dBm |
| Power Supply | DC –48 V (range –37 V to –57 V) |
| Power Consumption (LTE single-mode) | Average: ~ 415 W Peak: ~ 665 W |
| Power Consumption (GSM+LTE dual-mode) | Average: ~ 425 W Peak: ~ 675 W |
| Interfaces | • ANT1–ANT4: 50 Ω DIN connectors for TX/RX lines • OPT1, OPT2: Optical (LC) for RRU-BBU / cascading • AISG / MON, LMT O&M: DB15, etc. |
| CPRI / Fronthaul | 2× CPRI ports, up to 10 Gbps (CPRI v5.0) |
| Physical / Mechanical | Size: 415 × 296 × 145 mm Weight: ~ 20 kg |
| Environmental | Operating Temp: –40°C to +55°C Humidity: 5% – 100% Protection: IP65 Grounding: ≤ 5 Ω (or stricter as per site) |
| Electromagnetic / Surge & ESD | ESD: ±6 kV (contact), ±8 kV (air) Surge immunity (DC power port — line to line: ±2 kV; line to ground: ±4 kV) |
| Reliability | MTBF ≥ 499,000 hours MTTR: ≤ 1 hour Availability: ≥ 99.9998 % Max downtime ≈ 1.053 min/year |
