| 製品名: | ルーター | 部品番号: | ISR4221/k9 |
|---|---|---|---|
| 支払い: | TT | 出荷: | DHL |
| 状態: | 新しい | リードタイム: | 2-3日 |
| 保証: | 1年 | キーワード: | ISR 4351 |
Cisco ISR4221/K9 Specifications |
|
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 8 GB |
| Maximum flash memory | 8 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 (combo CON/AUX port) |
| Power-supply options | External: AC Only |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (no PoE support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (no PoE support) |
Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps throughput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.
Table 1 shows the Quick Specs.
| Product Code | Cisco ISR4221/K9 |
| Aggregate Throughput | 35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| NIM (Network Interface Modules) slots | 2 |
| Onboard ISC slot | No |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Flash Memory | 8 GB |
| Power-supply options | External AC only |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm) |
| Weight with AC PS (no modules) | 7.1 lb (3.22 kg) |

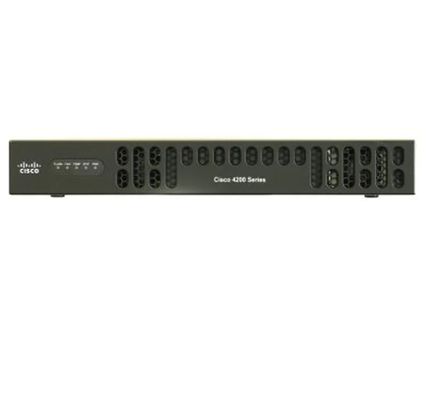

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221/K9.
·There are 4 LEDs on the front panel.

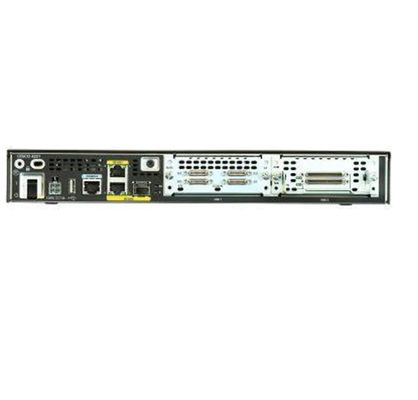

Figure 2 shows the back panel of Cisco ISR4221/K9.
Note:
| ① | GE 0/0/0 RJ-45 (copper cable) port | ⑤ | Console port |
| ② | Power switch | ⑥ | GE 0/0/1 (copper cable) port |
| ③ | Power input connector | ⑦ | GE 0/0/0 SFP (fiber-optic) port |
| ④ | GE “MGMT” port (with USB port below) | ⑧ | NIM slots |
Table 2 shows some recommended modules and cards.
| Items | Models | Description |
| Console and Auxillary Cables | CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-ES2-4 | Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2 | |
| NIM-ES2-8 | Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM | |
| SFPs for On-Board GE Ports | GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
| GLC-SX-M MD | Cisco GLC-SX-M M D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
Table 3 shows the comparison.
| Technical Specifications | ISR4461/K9 | ISR4451-X/K9 | ISR4431/K9 | ISR4351/K9 | ISR4331/K9 | ISR4321/K9 | ISR4221/K9 |
| Aggregate Throughput | 1.5Gbps |
1 Gbps to 2 Gbps |
500 Mbps to 1 Gbps |
200 Mbps to 400 Mbps |
100 Mbps to 300 Mbps |
50 Mbps to 100 Mbps |
35 Mbps to 75 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 | 4 | 4 | 3 | 3 | 2 | 2 |
| RJ-45-based ports | 4 | 4 | 4 | 3 | 2 | 2 | 2 |
| SFP-based ports | 4 | 4 | 4 | 3 | 2 | 1 | 1 |
| Enhanced service-module slots | 3 | 2 | 0 | 2 | 1 | 0 | 0 |
| Doublewide service-module slots | 2 | 1 (assumes no singlewide SM-X modules installed) | 0 | 1 (assumes no singlewide SM-X modules installed) | 0 | 0 | 0 |
| NIM slots | 3 | 3 | 3 | 3 | 2 | 2 | 2 |
| OIR (all I/O modules) | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Onboard ISC slot | 1 | 1 | 1 | 1 | 1 | 1 | No |
