商品の詳細:
|
| 製品名: | スイッチ | 部品番号: | C9200CX-12T-2x2G-E |
|---|---|---|---|
| 支払い: | TT | 出荷: | DHL |
| 状態: | 新しい | リードタイム: | 2-3日 |
| 保証: | 1年 | キーワード: | C9200CX-12T-2x2G-E |
| ハイライト: | Cisco C9200CX 12-port Gigabit switch,Catalyst 9200CX switch with SFP+ uplinks,Cisco Ethernet switch with Network Essentials |
||

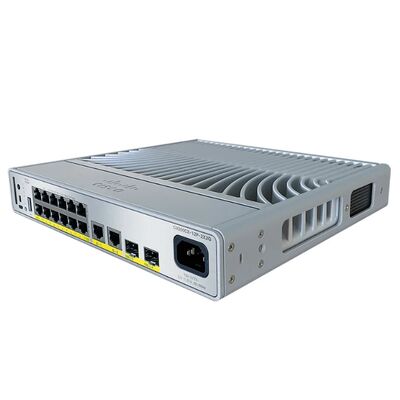

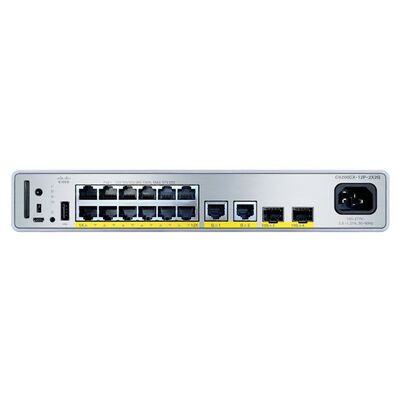

The Cisco C9200CX-12T-2X2G-E is a compact, high-performance Layer 3 managed switch designed for space-constrained enterprise, industrial, and edge network deployments. It features 12×1G copper downlink ports, 2×10G SFP+ and 2×1G copper uplinks for flexible aggregation. Powered by Cisco Network Essentials software, it delivers robust Layer 3 routing, advanced security, and QoS capabilities. The fanless design ensures silent operation and wide temperature tolerance (-40°C to +65°C), making it ideal for harsh environments. It supports flexible power via PoE PD (802.3bt Class 6) or auxiliary adapters, simplifying installation. With 240 Gbps switching capacity and 178.57 Mpps forwarding rate, it ensures reliable, high-speed connectivity for critical network applications.
Table 1 shows the Quick Specs.
| Item | Details |
|---|---|
| Model | C9200CX-12T-2X2G-E |
| Brand | Cisco |
| Series | Catalyst 9200CX Compact |
| Software License | Network Essentials |
| Ports | 12×10/100/1000BASE-T, 2×10G SFP+, 2×1G Copper Uplink |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 178.57 Mpps |
| Design | Fanless, 1U Rack-mountable |
| Power Options | PoE PD (802.3bt Class 6), Aux AC/DC Adapter |
| Parameter | Specification |
|---|---|
| General | |
| Product Model | C9200CX-12T-2X2G-E |
| Switch Type | Layer 3 Managed Compact Gigabit Switch |
| Software License | Cisco Network Essentials |
| Port Configuration | |
| Downlink Ports | 12×10/100/1000BASE-T RJ45 (Auto-sensing) |
| Uplink Ports | 2×10GBASE-X SFP+ Slots, 2×1GBASE-T Copper |
| PD Port | 1×1G PoE PD (802.3bt Class 6, 51W Input) |
| Management Ports | 1×Micro-USB Console, 1×USB Type-A, 1×SD Card Slot |
| Performance | |
| Switching Capacity | 240 Gbps |
| Packet Forwarding Rate | 178.57 Mpps |
| MAC Address Table | 32K Entries |
| IPv4 Routes | 14,000 |
| IPv6 Routes | 2,000 |
| Features | |
| Layer 3 | Static Routing, RIP, OSPF, VRF-Lite |
| VLAN | 802.1Q, Voice VLAN, Private VLAN |
| QoS | 8 Queues, ACL, Traffic Policing, Shaping |
| Security | 802.1X, Port Security, Storm Control, 256-bit AES |
| Management | CLI, Web UI, SNMP v3, NETCONF, RESTCONF |
| Power & Environment | |
| Power Input | PoE PD (51W) or Aux AC/DC Adapter |
| Power Consumption | < 40W |
| Operating Temp | -40°C to +65°C |
| Humidity | 5%–90% (Non-condensing) |
| Physical | |
| Dimensions (W×D×H) | 44.5 × 16.5 × 4.4 cm |
| Weight | ~2.5 kg |
| Mounting | 1U Rack-mount, Desktop |
