商品の詳細:
|
| 製品名: | ファーウェイのネットワークスイッチ | 部品番号: | S5755-H24UN4Y2CZ |
|---|---|---|---|
| 支払い: | T | 出荷: | DHL |
| 状態: | 新しい | リードタイム: | 2～3日 |
| 保証: | 1年 | キーワード: | S5755-H24UN4Y2CZ |

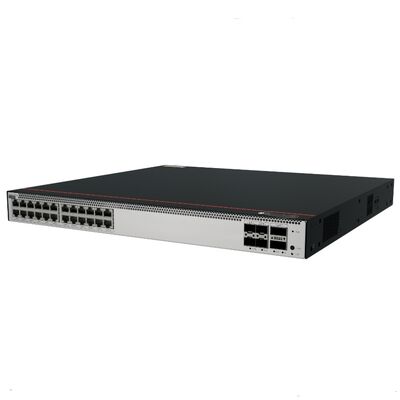

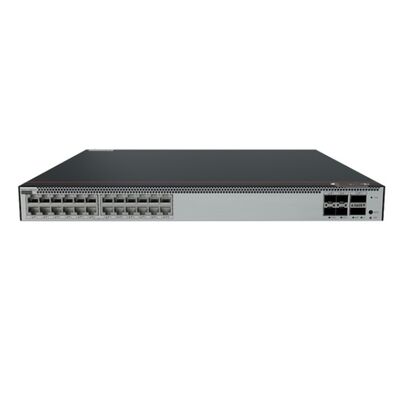

The Huawei CloudEngine S5755-H24UN4Y2CZ is a high-performance 2.5G multi-Gigabit campus switch designed for Wi-Fi 6/7 wireless access and enterprise aggregation. It provides 24×2.5GBASE-T PoE++ ports (90W per port) to power high-density APs and IoT devices, paired with 4×25GE and 2×100GE uplinks for scalable, low-latency core connectivity.
| Item | Specification |
|---|---|
| Ports | 24×2.5G Base-T, 4×25GE SFP28, 2×100GE QSFP28. |
| PoE | 90W PoE++, 3×PSU, N+1 backup. |
| Capacity | 2.56/25.6 Tbps, 840 Mpps. |
| Features | VXLAN, MACsec, iStack. |
| Use Case | Wi-Fi 6/7 access, enterprise campus. |
| Parameter | Details |
|---|---|
| Model | CloudEngine S5755-H24UN4Y2CZ |
| Switching Capacity | 2.56 Tbps (packet), 25.6 Tbps (fabric). |
| Forwarding Performance | 840 Mpps. |
| Fixed Ports | 24×100M/1/2.5G Base-T
|
| PoE Standard | IEEE 802.3bt (PoE++), 90W per port. |
| Power Supply | 3×AC/DC PSU, N+1 redundancy. |
| MAC Address Table | Up to 256K entries |
| VLAN | 4K VLANs, QinQ, VXLAN |
| Security | Port-based MACsec, 802.1X, ACL. |
| Stacking | iStack (up to 9 units) |
| Dimensions | 442×420×43.6 mm (1U) |
| Environment | -5°C to 45°C, 5%–95% RH |
