| 製品名: | CloudEngine S5735-L24P4X-A1 | キーワード: | S5735-l24p4x-a1huawei sfpスイッチ束 |
|---|---|---|---|
| 部品番号: | 98011318 | モデル: | S5735-L24P4X-A1 |
| 包装を用いる次元（D） [mm H X W X （。）: | 4 | 包装を用いる重量[kg （lb）: | 4 |
| 包まないで重量[kg （lb）: | 4 | 典型的なパワー消費量[W: | 4 |
| 製品名: | ファーウェイのネットワークスイッチ | 部品番号: | S5735-L24T4S-A1 |
| 支払い: | TT/Paypal | 出荷: | DHL/フェデックス |
| 保証: | 1年 | リードタイム: | 2~3日 |
| 状態: | 新しい | キーワード: | S5735-L24T4S-A1 |

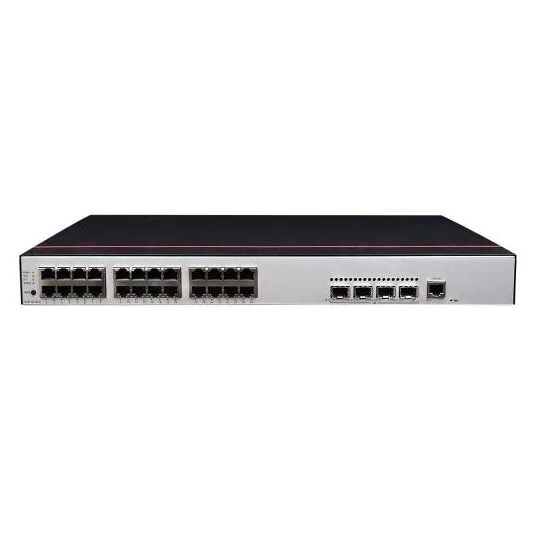

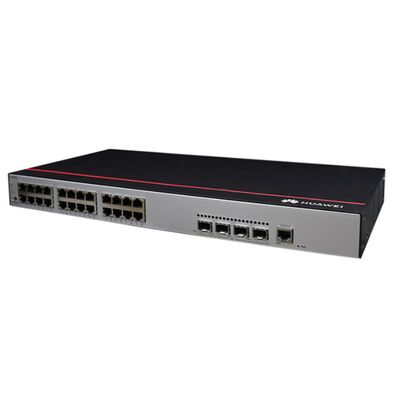

Built on next-generation, high-performance hardware and powered by Huaweis Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols providing higher performance and more powerful service processing capabilities for networks.
Table 1 shows the quick spec.
|
Product Model |
S5735-L24T4S-A1 |
|
Memory |
512 MB |
|
Flash memory |
512 MB |
|
Typical power consumption [W] |
32.7 W |
|
Typical heat dissipation [BTU/hour] |
111.58 BTU/hour |
Table 2 shows the recommended models.
|
Model |
Description |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Table 3 shows the comparison.
|
Model |
Description |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
S5735-L24T4S-A1 Specification |
|
|
Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
|
Dimensions with packaging (H x W x D) [mm(in.)] |
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
|
Chassis height [U] |
1 U |
|
Typical power consumption [W] |
32.7 W |
|
Typical heat dissipation [BTU/hour] |
111.58 BTU/hour |
|
Maximum power consumption [W] |
47.6 W |
|
Maximum heat dissipation [BTU/hour] |
162.42 BTU/hour |
|
MTBF [year] |
66.16 year |
|
MTTR [hour] |
2 hour |
|
Availability |
>0.99999 |
|
Noise at normal temperature (acoustic power) [dB(A)] |
39 dB(A) |
|
Noise at normal temperature (acoustic pressure) [dB(A)] |
27.2 dB(A) |
|
Number of card slots |
0 |
|
Number of power slots |
0 |
|
Number of fans modules |
1 |
|
Redundant power supply |
Not supported |
|
Long-term operating temperature [°C(°F)] |
-5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
|
Short-term operating temperature [°C(°F)] |
Not supported |
|
Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used. |
|
Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
|
Long-term operating altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
|
Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
|
Power supply mode |
AC built-in |
|
Rated input voltage [V] |
AC input: 100 V AC to 240 V AC, 50/60 Hz |
|
Input voltage range [V] |
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
|
Maximum input current [A] |
2 A |
|
Memory |
512 MB |
|
Flash memory |
512 MB |
|
Console port |
RJ45 |
|
Eth Management port |
Not supported |
|
USB |
Not supported |
|
RTC |
Not supported |
|
RPS input |
Not supported |
|
Service port surge protection [kV] |
Common mode: ±7 kV |
|
Power supply surge protection [kV] |
±6 kV in differential mode, ±6 kV in common mode |
|
Types of fans |
Built-in |
|
Heat dissipation mode |
Heat dissipation with fan, intelligent fan speed adjustment |
|
Airflow direction |
Air intake from left and front, air exhaustion from right |
|
PoE |
Not supported |
|
Certification |
EMC certification Safety certification Manufacturing certification |
