商品の詳細:
|
| 製品名: | ファーウェイのネットワークスイッチ | 部品番号: | S5732-H24S6Q |
|---|---|---|---|
| 支払い: | TT/Paypal | 出荷: | DHL |
| 状態: | 新しい | リードタイム: | 2～3日 |
| 保証: | 1年 | キーワード: | S5732-H24S6Q |
| Item | Specification |
|---|---|
| Model | Huawei S5732-H24S6Q |
| Series | CloudEngine S5732-H |
| Downlink Ports | 20 × GE SFP + 4 × 10GE SFP+ |
| Uplink Ports | 6 × 40GE QSFP+ |
| Switching Capacity | 600 Gbps / 2.4 Tbps |
| Forwarding Rate | 450 Mpps |
| Stack Support | iStack |
| Network Virtualization | VXLAN, SVF |
| Wireless Management | Up to 1024 APs |
| Security Features | ECA, Threat Detection |
| Power Supply | Dual Pluggable AC/DC PSU |
| Form Factor | 1U Rack Mount |
Source: Huawei official specifications.

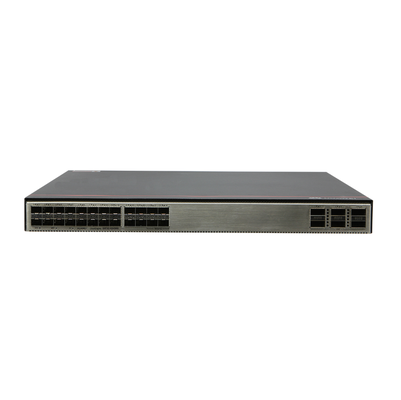

The Huawei S5732-H24S6Q is a next-generation all-optical enterprise switch designed for campus core, aggregation, data center edge, and high-density optical access deployments. Built on Huawei's advanced VRP platform, it combines high-performance Layer 2/Layer 3 switching, intelligent network virtualization, integrated wireless management, and comprehensive security capabilities.
Equipped with 20 Gigabit SFP ports, 4 × 10G SFP+ ports, and 6 × 40G QSFP+ uplinks, the S5732-H24S6Q provides flexible optical connectivity while supporting a system switching capacity of up to 2.4 Tbps and forwarding performance of 450 Mpps. The switch is ideal for enterprises migrating from traditional Gigabit networks to 10G and 40G architectures.
The switch supports Huawei iStack technology, allowing multiple switches to operate as a single logical device for simplified management and improved redundancy. VXLAN, BGP-EVPN, and Super Virtual Fabric (SVF) help enterprises build scalable cloud-campus networks with simplified operations and lower management costs.
With built-in wireless AC functionality supporting up to 1024 access points, the S5732-H24S6Q enables unified wired and wireless network management, making it suitable for large campuses, universities, healthcare facilities, and enterprise headquarters.
| Parameter | Details |
|---|---|
| Product Model | Huawei S5732-H24S6Q |
| Fixed Ports | 20 × GE SFP, 4 × 10GE SFP+, 6 × 40GE QSFP+ |
| Switching Capacity | 600 Gbps / 2.4 Tbps |
| Forwarding Performance | 450 Mpps |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Wireless Management | Up to 1024 APs |
| VXLAN Support | Yes |
| BGP-EVPN | Yes |
| SVF | Yes |
| iPCA | Yes |
| Stack Ports | Any QSFP+ Ports |
| Dimensions | 442 × 420 × 43.6 mm |
| Height | 1U |
| Max Power Consumption | 229W |
| Availability | >99.999% |
| MTBF | 62.27 Years |
Supports mixed GE, 10GE, and 40GE optical interfaces for flexible campus aggregation and data center edge deployments.
VXLAN and BGP-EVPN enable network segmentation, cloud migration, and large-scale virtualized campus networks.
Super Virtual Fabric (SVF) virtualizes switches and APs into a single management entity, reducing operational complexity.
Acts as a native wireless controller managing up to 1024 APs without additional hardware investment.
Supports Encrypted Communication Analytics (ECA), threat detection, traffic analysis, and security collaboration.
Supports IPv6, SDN evolution, intelligent O&M, and cloud-managed networking environments.
| Model | Positioning | Ports |
|---|---|---|
| Huawei S5732-H48S6Q | Higher Density Version | 44×GE SFP + 4×10GE + 6×40GE |
| Huawei S6730-H24X6C | 10G/40G/100G Campus Core | 24×10GE + 6×100GE |
| Huawei S5735-S24T4X | Enterprise Access | 24×GE + 4×10GE |
| Huawei S5731-H24P4XC | PoE Aggregation | 24×GE PoE + 10GE Uplinks |
| Huawei S6730-H48X6C | High-Density Core | 48×10GE + 6×100GE |
The S5732-H48S6Q offers 44 GE SFP access ports instead of 20, making it suitable for larger campus aggregation environments, while both models provide the same 6 × 40GE uplinks and advanced software features.
Yes. Huawei iStack technology allows multiple switches to operate as a single logical unit, improving reliability and simplifying management.
Yes. The switch includes native AC functionality and can manage up to 1024 Huawei wireless access points.
Absolutely. Its 40GE QSFP+ uplinks, VXLAN support, BGP-EVPN capabilities, and high switching capacity make it suitable for data center edge and aggregation layers.
A professional supplier should provide:
The Huawei S5732-H24S6Q delivers an ideal combination of high-density optical access, 40G aggregation performance, advanced virtualization technologies, wireless convergence, and enterprise-grade security. For organizations planning network modernization, cloud campus deployment, or high-speed optical aggregation, the S5732-H24S6Q offers excellent scalability, reliability, and long-term investment protection.
